PIONIRS NX
Wear the power
of TD-NIRS
Absolute muscle oximetry, off the bench and into motion. No more fibres, cables and limits.
- 2wavelengths
- 3 cmsource–detector separation
- Bluetoothwireless link
- 3-axismotion recording
Bringing absolute muscle oximetry into motion

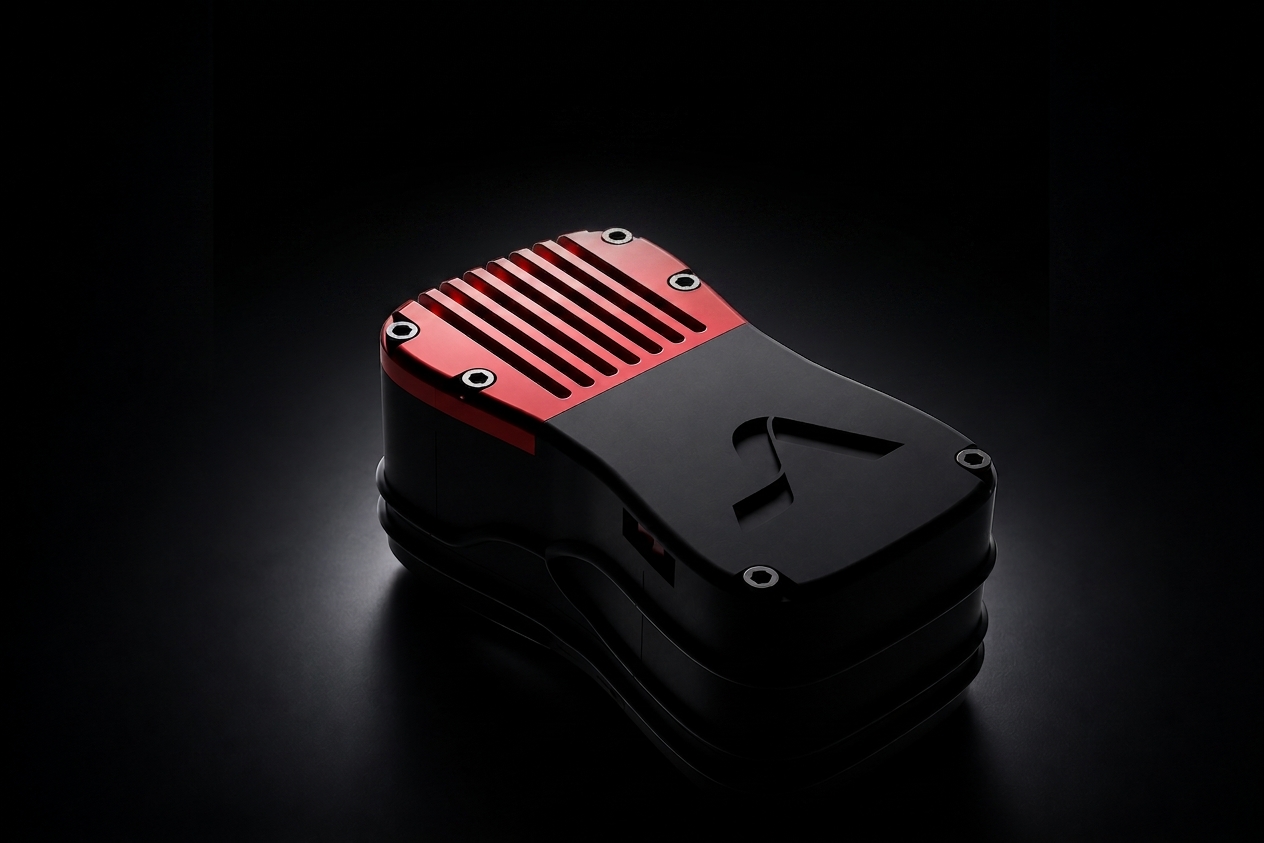

PIONIRS introduces the first fully wearable and wireless time-domain NIRS device for exercise monitoring and muscle oxygenation studies. It is worn directly over the muscle and streams data to the NX-Go! app while the subject moves.
Thanks to photon’s time of flight measuremet, PIONIRS NX separates absorption from scattering information, returning absolute optical properties and quantitative hemoglobin + myoglobine concentrations. Measurements can be compared across sessions, subjects and operators. No baseline normalisation, no calibration are needed.

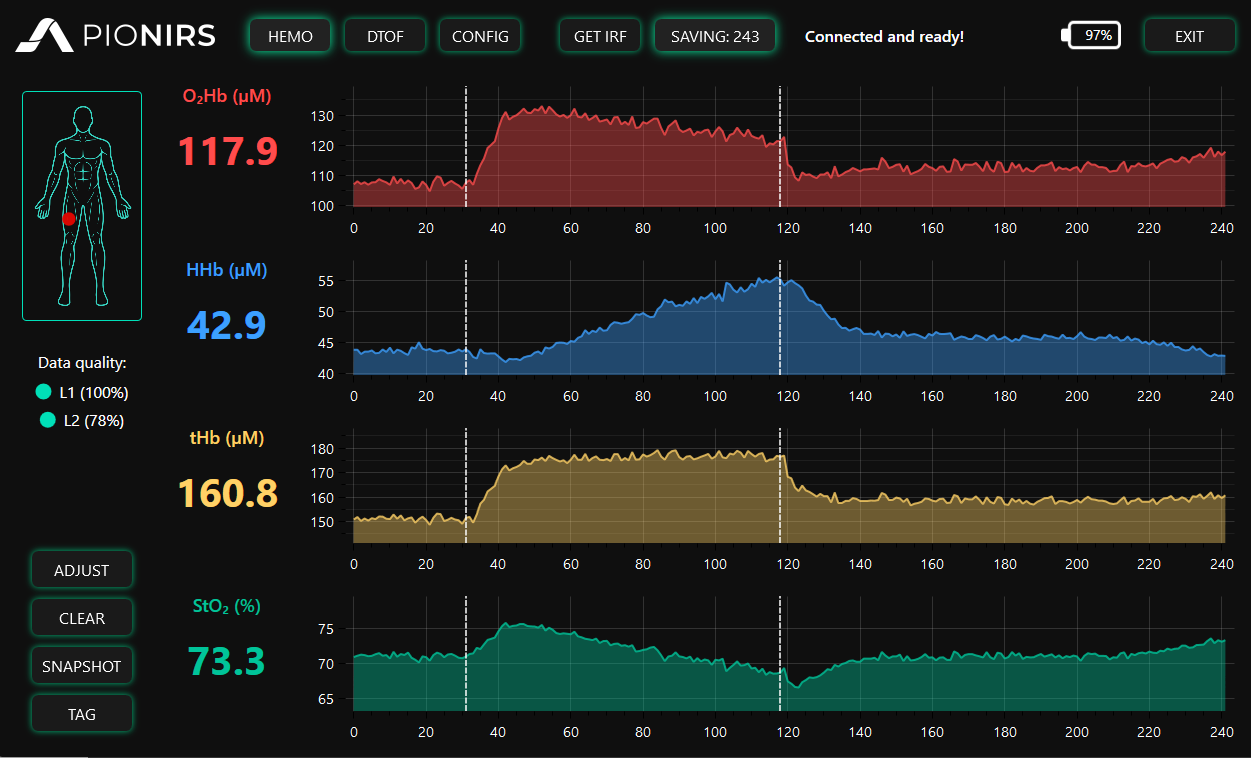

- O2Hb Oxygenated (hemo+myo)globin, µM
- HHb Deoxygenated (hemo+myo)globin, µM
- tHb Total (hemo+myo)globin, µM
- StO2 Muscle Tissue oxygen saturation, %

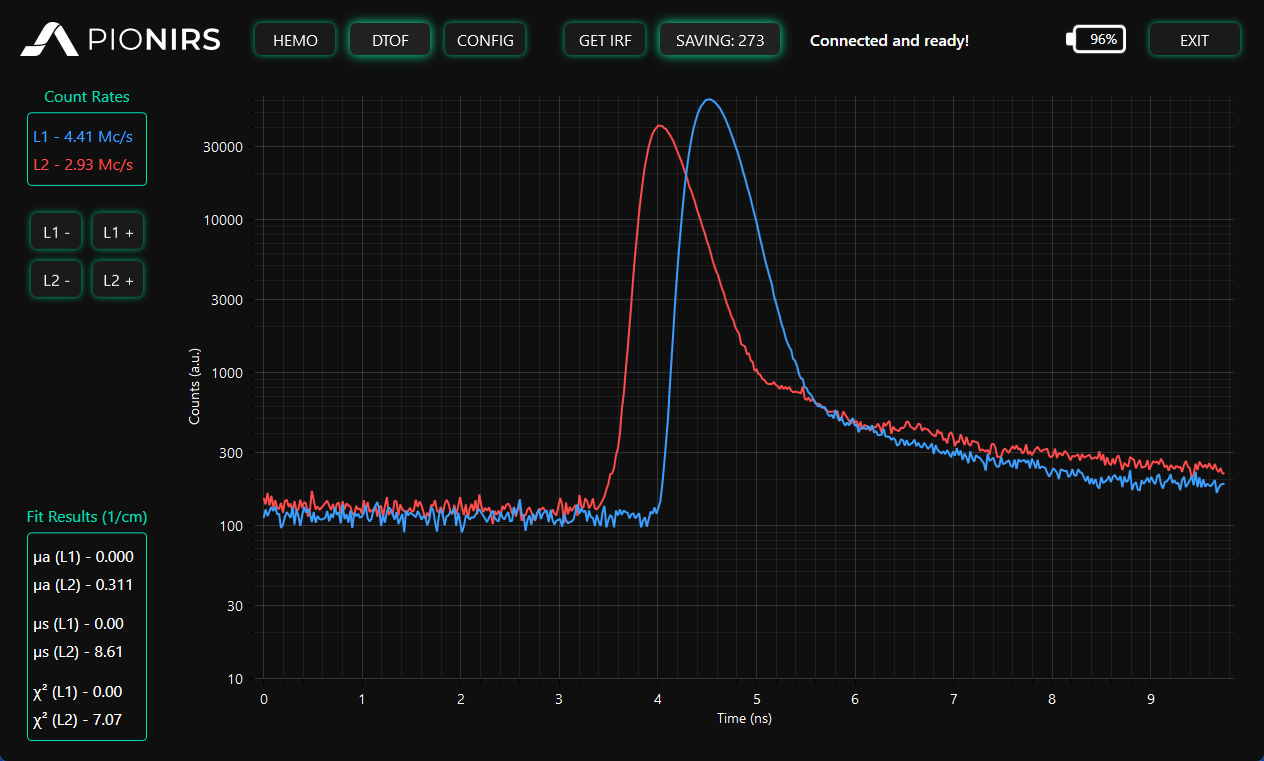

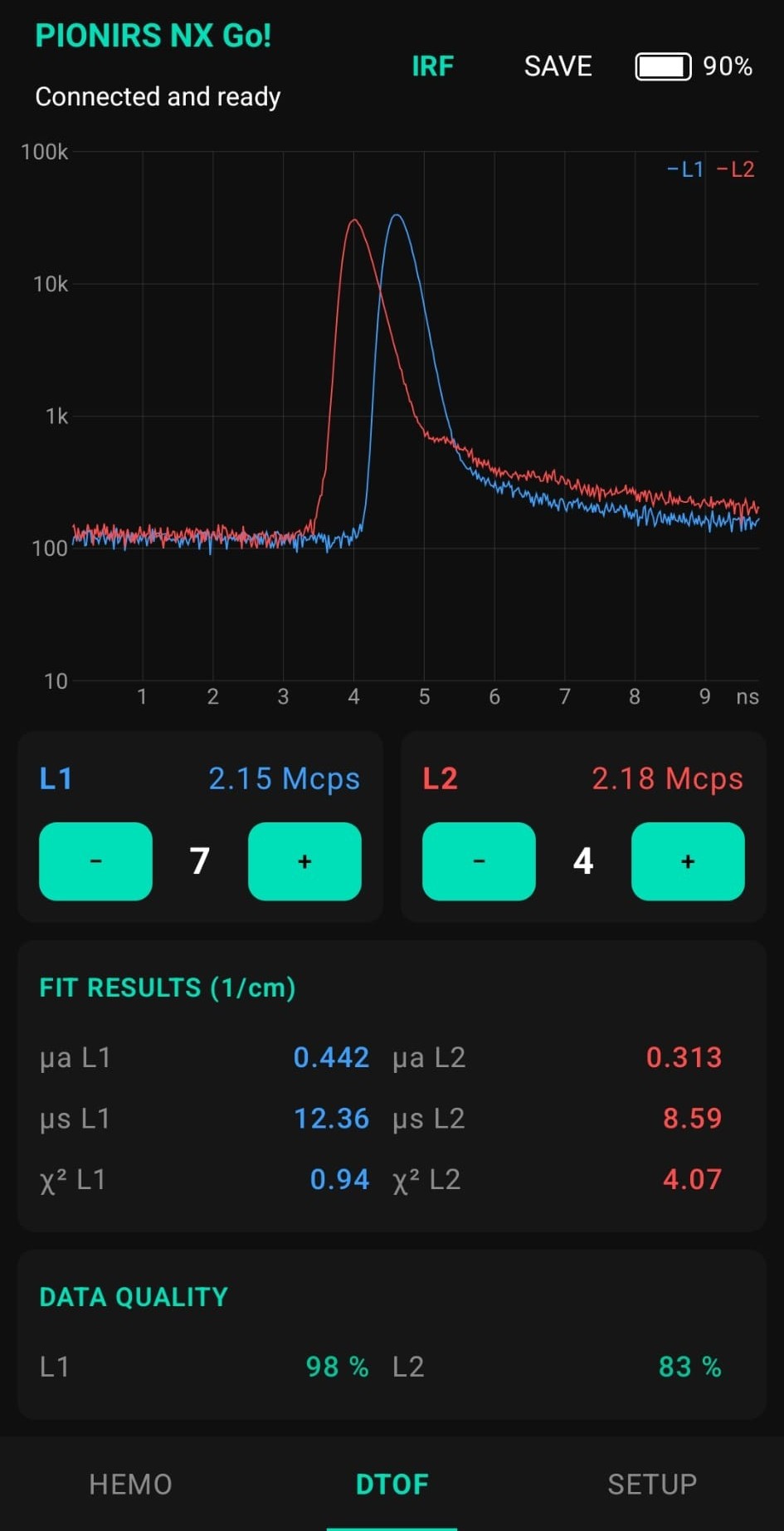

Full access to raw data
Absolute optical properties, hemodynamic values and raw photon distribution of time of flight can be downloaded and processed externally.
Longitudinal and inter-subject studies
Absolute concentrations make today’s session comparable with last month’s, and one athlete comparable with another (no skin-pigmentation bias).
Insight into tissue structure
Reduced scattering is measured alongside absorption and differential pathlenght factor (DPF), adding information on the tissue itself, not only on its hemodynamics.

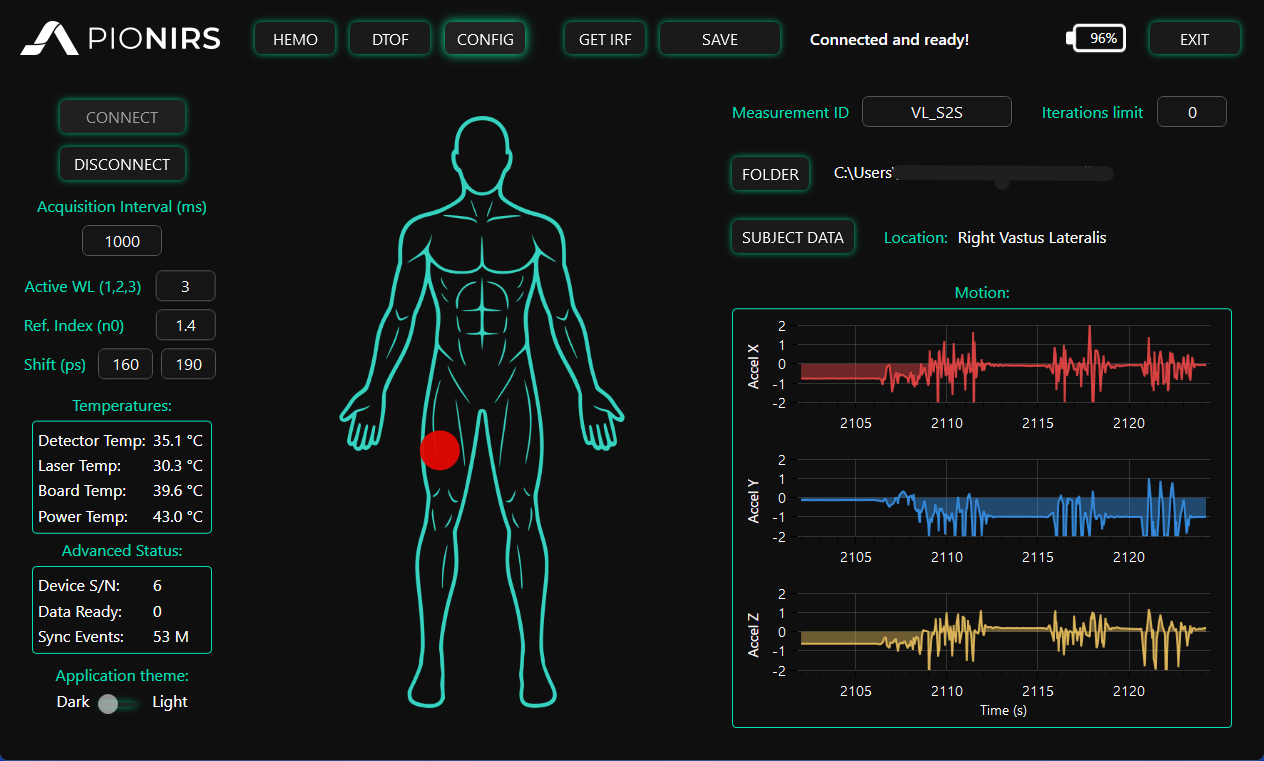

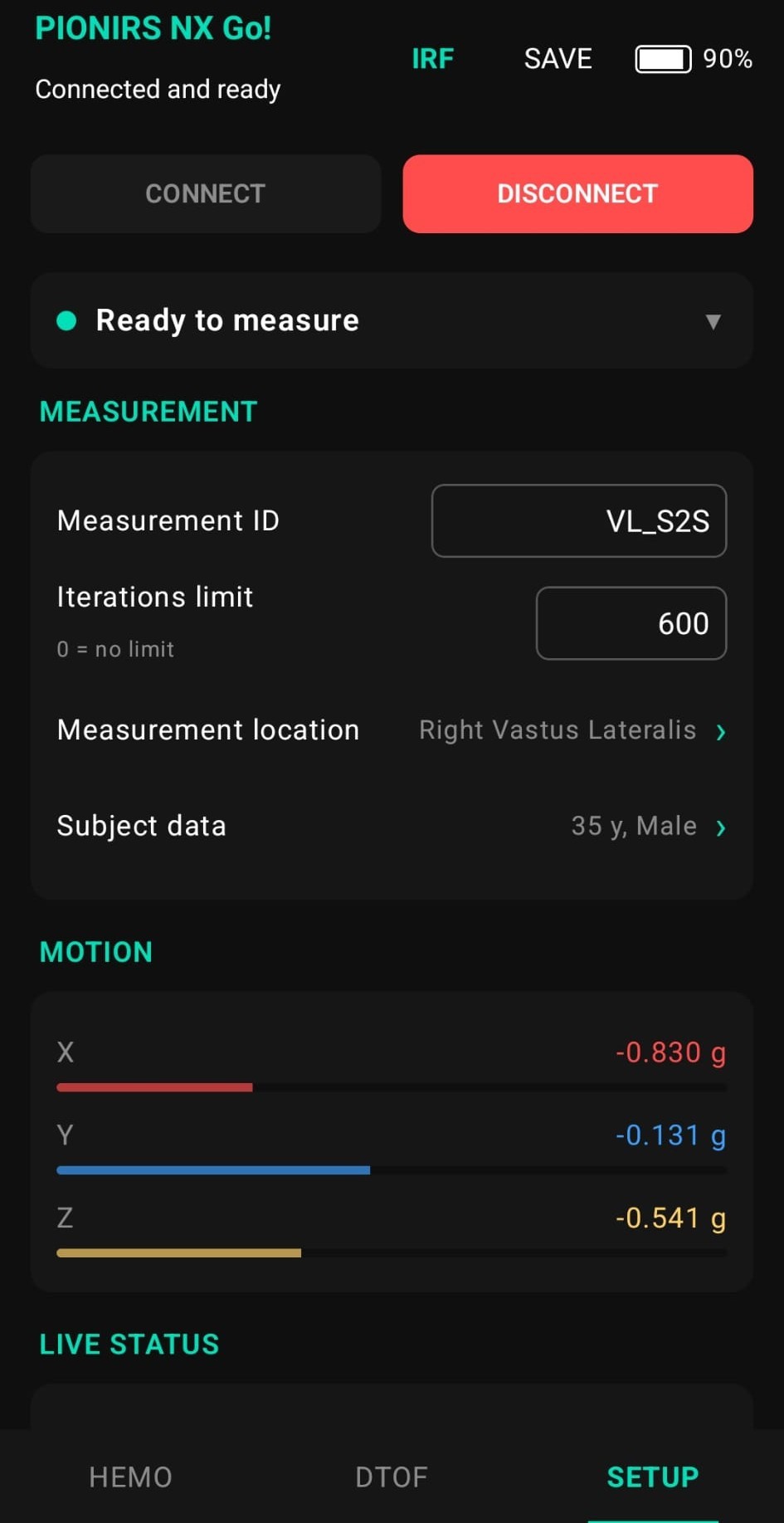

Motion recorded with the signal
A 3-axis accelerometer logs movement on the same time base, so cadence and muscle position can be compared against the hemodynamic traces.
Technical specifications
What is inside
- Technique
- Time-domain NIRS, absolute µa and µs′
- Wavelengths
- Dual-wavelength, 660 nm and 830 nm
- Source–detector separation
- 3 cm
- Measured quantities
- O2Hb, HHb, tHb, StO2
- Raw data
- Distribution of times of flight (DTOF) per wavelength
- Acquisition interval
- User selectable, 1 s by default
- Motion sensing
- 3-axis accelerometer, logged with the optical data
- Connectivity
- Bluetooth Low Energy
- Power
- Embedded rechargeable battery, 1 h of continuous acquisition
- Size and weight
- 70x40x30 mm, 100 g
One device,
whatever you carry

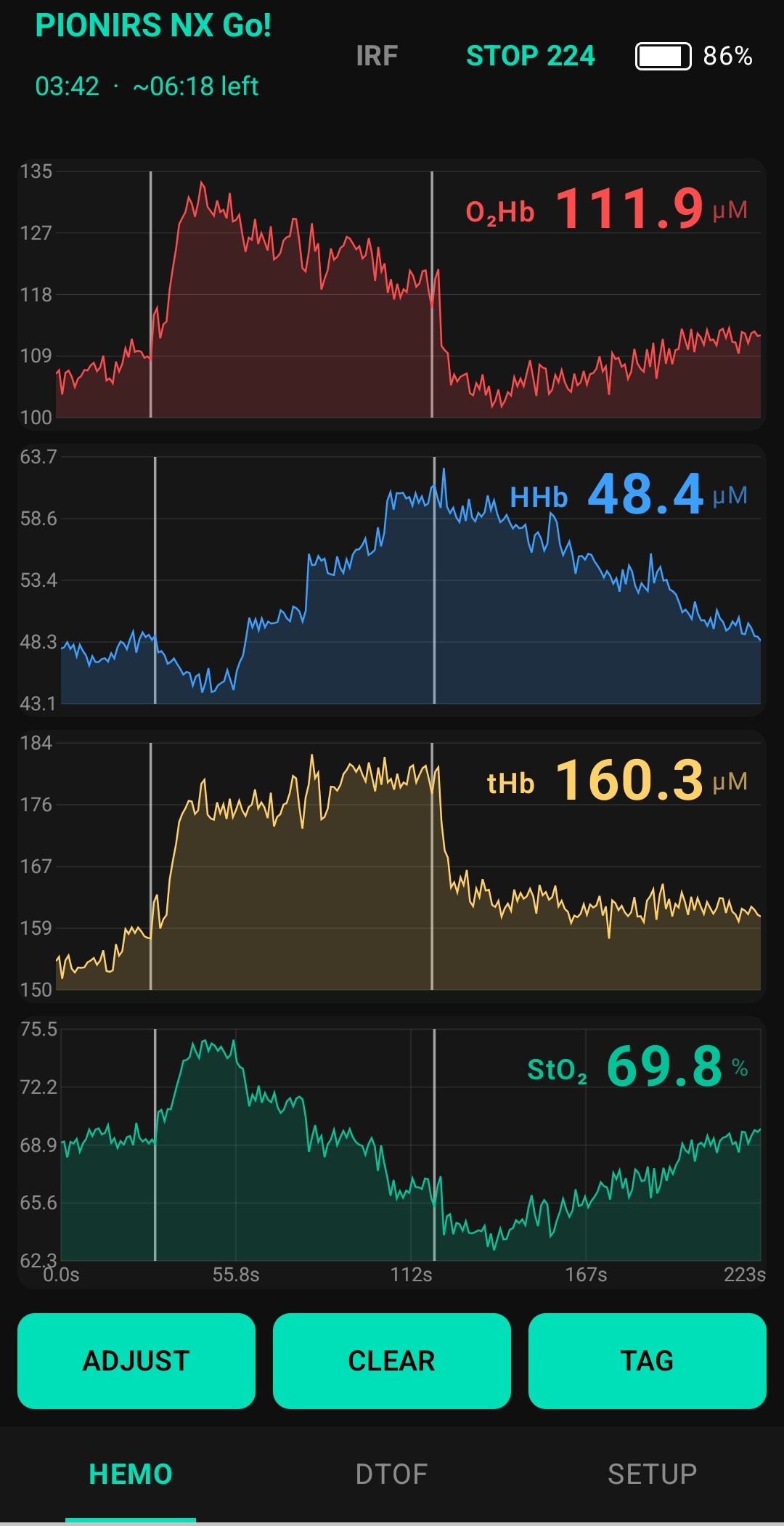

Run a full protocol from a laptop in the lab, or follow the same measurement on a tablet or a phone at the trackside. Live traces, data quality, tagging and saving are the same everywhere.
- Laptop and desktop
- Tablet
- Smartphone
Desktop app
Mobile app
Get involved
Early access program:
We are selecting a small group of research teams to work with NX before it is generally available. Send us the application you have in mind. If it fits, we ship you a unit and we follow the study with you.
Places are limited and assigned on the scientific interest of the proposal.
- 1 You write to us A short description of the study you want to run with the wearable TD-NIRS device.
- 2 We review it together A call with our team to check feasibility, measurement sites and timing.
- 3 You measure You receive a unit ahead of the launch, with direct support from the people who built it.
Product intended to be used for research applications only, not sold as medical device. Product not intended to be used for diagnosis or disease treatments. Specifications and data are preliminary and may be subject to changes, to improve function, reliability or design.
